Marantz
In Stock
Domestic Multi-Carrier Shipping · 2-Year Warranty · Expert Support
Feature
Model
LINK10N/U1C
UPC
747192143077
The Best of the Best
From the triple-layer aluminum chassis with copper plating to entirely original multi-layer PCBs, isolated sub-enclosures and HDAM modules, LINK 10n is the product of decades of expertise in audio engineering. This remarkable product sets a new benchmark with meticulous construction, state-of-the art technologies, and elegant design.
Crafted in Shirakawa
The finest equipment Marantz has to offer is engineered and produced at our own facility in Japan. Shirakawa Audio Works is home to our most highly skilled and longest tenured engineers and artisans. LINK 10n is designed with such precision that it requires incredible care in manufacturing that only Shirakawa Audio Works can provide. Close collaboration between design and build teams under the same roof is a critical requirement to ensure the highest-level results.
Sound Master Tuned
As the flagship digital player in the Marantz portfolio, LINK 10n features the best measured performance of any digital product we’ve ever produced. But that’s not a sufficient goal. Through extensive and careful listening, the Sound Master has selected numerous premium parts to be included in key circuits that elevate audible performance to a new standard of excellence.

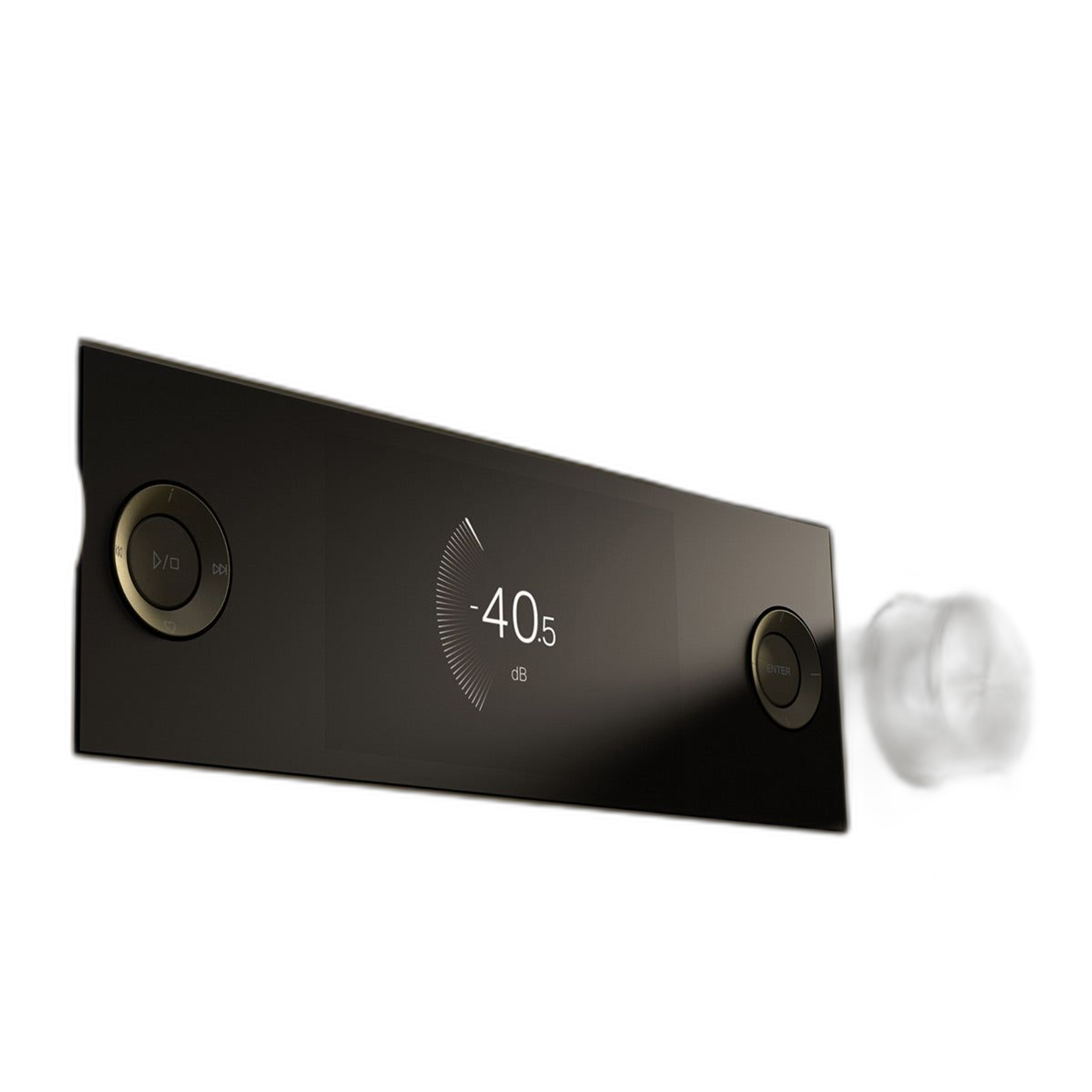

Luxurious OLED Display
LINK 10n comes with a large high-resolution full-color HD large TFT Color Display for a beautiful user interface and intuitive operation. Familiar arrow buttons make navigation effortless. Scroll to select your desired input and see source, track info, and play mode displayed on the screen, or enjoy easy HEOS onboarding and access to the app via a QR code.
Marantz Industrial Design
Machined and brushed aluminum control surface, sculpted backshell, spun knobs, and high-resolution full color display are each striking features of 10 Series components. The design is both distinctively Marantz, drawing inspiration from classic models, and progressively modern.
HEOS® Built-in
Enjoy limitless connectivity with HEOS® Built-in. Stream in high resolution from today’s leading music platforms and enjoy high-resolution digital audio files up to 24-bit 192kHz sampling. Numerous streaming services and technologies are supported including TIDAL Max, AirPlay 2, and more.
Preamplifier Function
LINK 10n can act as a complete preamplifier front-end for your system, with all the functions of a modern high-end stereo system. Complete with single ended and balanced analog inputs, digital inputs, and a Marantz Premium Phono EQ supporting both MM and MC cartridges, LINK 10n is a fully featured front end for even the highest performance stereo systems.
Digital Inputs
Whether it acts as your network audio player to add high-resolution digital playback, or seamlessly facilitates digital to analog conversion, you’ll enjoy upgraded performance for legacy audio components such as CD players, or even your TV. LINK 10n supports a variety of digital inputs including optical, coaxial, USB-A, USB-B DAC, and HDMI-ARC.
| Specification | Value | Info |
|---|---|---|
| Unit (W × H × D) | 17.32" × 7.55" × 16.61" (with antenna) | General |
| Net weight | 73.41 lbs. | General |
| Voice Assistants | Apple Siri, Google Assistant | General |
| Frequency Response | PCM 2Hz–50kHz (-3dB) | Audio |
| Harmonic distortion | PCM 0.0004% | Audio |
| S/N | PCM 0.0004% | Audio |
| Dynamic range | PCM 0.0004% | Audio |
| UNBALANCED | 2.0Vrms | Audio |
| BALANCED | 4.0Vrms | Audio |
| PHONO (MC) | 76dB | S/N |
| PHONO (MM) | 88dB | S/N |
| BALANCED |
| 122dB |
| S/N |
| LINE | 122dB | S/N |
| MM | 8mV | Phono Input sensitivity |
| MC | 80mV | Phono Input sensitivity |
| MC Low | 32 ohms | Phono Input impedance |
| MC Mid | 100 ohms | Phono Input impedance |
| MC High | 390 ohms | Phono Input impedance |
| MM | 39 kohms | Phono Input impedance |
| Consumption | 75W | Power |
| Standby | Less than 0.3W | Power |
| Network Control On (Bluetooth, Ethernet, Wi-Fi, USB) | Less than 2W | Power |
| Output Circuit | New HDAM | Audio Feature |
| Power Transformer | Toroidal | Audio Feature |
| Pre Amplifier Circuit | New HDAM High Grade, Full balance | Audio Feature |
| Volume | Electric (MUSES 72323) Variable gain | Audio Feature |
| Bass / Treble / Mid / Balance Control | Yes / Yes / No / Yes | Audio Feature |
| Type of Tone Control | Electric | Audio Feature |
| Headphone Circuit | Discrete | Audio Feature |
| H/P Amp Gain Setting | Yes (Low / Mid / High) | Audio Feature |
| H/P On.Off Setting | H/P Off automatically, when in use | Audio Feature |
| DAC Circuit | New MMM-Conversion | Audio Feature |
| Dither | MMM-Stream (Dither 1, 2, Off) | Audio Feature |
| Noise Shaper | MMM-Stream (Balanced, Natural, Dynamic Music, Dymanic Voice) | Audio Feature |
| Digital Filter | MMM-Stream (Filter 1, 2 Selectable) | Audio Feature |
| Jitter Reducer | Yes | Audio Feature |
| DAC Master Clock Design (No Support for Network Playback) | Yes | Audio Feature |
| Asynchronous mode (for USB-B input) | Yes | Audio Feature |
| Isolator (for USB-B input) | Yes (Complete Isolation System Duo) | Audio Feature |
| Fixed Analog Output (RCA) | Cinch × 1 (Thick nickel-plated independent terminals) | Audio Feature |
| Pre / Variable Audio Output (RCA) | Cinch × 1 (Thick nickel-plated independent terminals) | Audio Feature |
| Fixed Balanced XLR Output | Yes (1 Pair) | Audio Feature |
| Pre/ Variable Balanced XLR Output | Yes (1 Pair) | Audio Feature |
| RCA Input | Cinch × 1 (Thick nickel plated independent terminals | Audio Feature |
| Balanced XLR Input | Yes (1 Pair) | Audio Feature |
| Yes (MM / MC) | Audio Feature |
| Marantz Musical Premium Phono EQ w/ Selectable MC impedance (3 position) | Audio Feature |
